IMO, the pic was worth the day. But, of course, the photograper is always wanting more.

I would be content (if I were the photographer) for a week.

Well, technically I was only out for an hour. Then I went and won a sailboat race (the first in my new boat, woo!). I still haven't gotten the nerve to break out the camera while racing, but those would be awesome shots.


ddrueding

Fixture
Joined
Feb 4, 2002
Messages
19,728
Location
Horsens, Denmark
Right in the middle of an HDR pano, an exposure set output RAW files with resolution of 3485x2348 instead of the usual 4272x2856. The pano was a total of 33 shots (11x3) and only one set of three right in the middle was smaller. WTF? Any ideas?


e_dawg

Storage Freak
Joined
Jul 19, 2002
Messages
1,903
Location
Toronto-ish, Canada
Right in the middle of an HDR pano, an exposure set output RAW files with resolution of 3485x2348 instead of the usual 4272x2856. The pano was a total of 33 shots (11x3) and only one set of three right in the middle was smaller. WTF? Any ideas?

Your camera is possessed. Send it to me at once so I can exorcise it. Time is of the essence; delay at your own peril. I will return it when it is safe to do so. Be sure to include any lenses, accesories, or media cards that may have come into contact with it.


ddrueding

Fixture
Joined
Feb 4, 2002
Messages
19,728
Location
Horsens, Denmark
Your camera is possessed. Send it to me at once so I can exorcise it. Time is of the essence; delay at your own peril. I will return it when it is safe to do so. Be sure to include any lenses, accesories, or media cards that may have come into contact with it.

;)


e_dawg

Storage Freak
Joined
Jul 19, 2002
Messages
1,903
Location
Toronto-ish, Canada
Good show, gents! It's difficult to choose between the two... IMHO, what I see is SD's has a bit more detail (and slightly more aliasing) in the rocks (although some of it is a bit of false detail from strong USM at a small radius setting), but less aliasing in the A/C grilles. Overall, a slightly better detail vs aliasing tradeoff by sd.

Maybe we should take it down to 800 x 600 since 1600 x 1200 is not proving to be much of a challenge for you ;)

Here's my entry:

http://www.pbase.com/image/99636069/original


ddrueding

Fixture
Joined
Feb 4, 2002
Messages
19,728
Location
Horsens, Denmark
IMHO, you went a bit overboard on the contrast. I'm not saying it looks bad, it just looks significantly different than the original.


e_dawg

Storage Freak
Joined
Jul 19, 2002
Messages
1,903
Location
Toronto-ish, Canada
IMHO, you went a bit overboard on the contrast. I'm not saying it looks bad, it just looks significantly different than the original.

Hmm... I seem to be optimizing more for further viewing distances than you guys... did something similar with your forest pic, but if you view up close and personal it looks a bit processed. But a bit further away, i think it looks better, as with your and sd's versions, the fine detail all fades into a blur unless you view close up. Perhaps you are spoiled with your massive LCD screen? It tends to emphasize detail and contrast compared to smaller monitors where everything is compressed together in a smaller space. It has the effect of viewing much closer.


ddrueding

Fixture
Joined
Feb 4, 2002
Messages
19,728
Location
Horsens, Denmark
Well, my screen has a 0.5415mm Pixel Pitch, and I'm viewing in "actual pixels" for the resizing. And, for the record, my resizing technique for both was:

1. Open in Photoshop CS3
2. Image size...
3. Change size and resample with "Bicubic Sharper (best for reduction)"
4. Save

Nothing else was done.


e_dawg

Storage Freak
Joined
Jul 19, 2002
Messages
1,903
Location
Toronto-ish, Canada

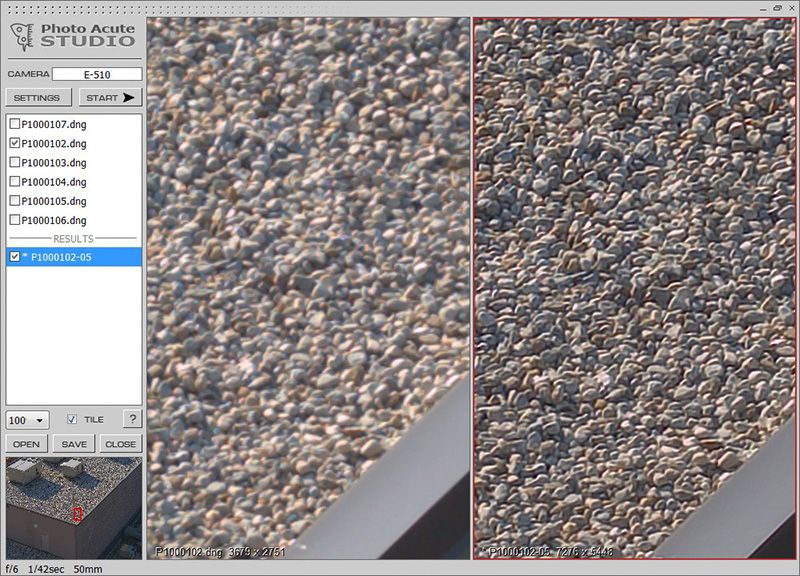

I don't know about sharpening, as I converted the RAW files directly to DNG and dumped them into Photo Acute Studio to stack 4 images to get the one I posted. Here's a before and after stacking at 100%:



e_dawg

Storage Freak
Joined
Jul 19, 2002
Messages
1,903
Location
Toronto-ish, Canada
Also, let's keep in mind that I was only using a 50 mm lens on a tiny 4/3 sensor that starts getting diffraction limited at f/5.6. The roof is not that close, and the details are quite small. At that pixel density, the images are not going to be clean at the pixel level.


Stereodude

Not really a
Joined
Jan 22, 2002
Messages
10,865
Location
Michigan
1. Open in Photoshop CS3
2. Image size...
3. Change size and resample with "Bicubic Sharper (best for reduction)"
4. Save

Nothing else was done.
I was working on my 15.4" 1680x1050 laptop LCD while on vacation.

This is my standard downsizing: (done both times)

1) open
2) create duplicate layer
3) high pass (1.0)
4) change to overlay with 100% opacity
5) flatten image
6) resize
7) create duplicate layer
8) high pass (1.0)
9) change to overlay with 50% opacity
10) flatten image
11) save


LunarMist

I can't believe I'm a Fixture
Joined
Feb 1, 2003
Messages
17,497
Location
USA
I don't know what you mean by stacked, but the images are obviously sharpened and some NR is applied. Of course that may be fine for printing, etc. I prefer to start resampling with unsharpened or just slightly sharpened images. However, I don't care much about downsampling in general. The subtle differences visible on screen don't show in 4x or 5x prints.


e_dawg

Storage Freak
Joined
Jul 19, 2002
Messages
1,903
Location
Toronto-ish, Canada
Thanks for the nice pics, sd. That looks like a very picturesque area and the weather looks great. i can imagine the feeling walking around there... it can lift a person's spirits...


e_dawg

Storage Freak
Joined
Jul 19, 2002
Messages
1,903
Location
Toronto-ish, Canada
I don't know what you mean by stacked, but the images are obviously sharpened and some NR is applied. Of course that may be fine for printing, etc. I prefer to start resampling with unsharpened or just slightly sharpened images. However, I don't care much about downsampling in general. The subtle differences visible on screen don't show in 4x or 5x prints.

LM, have you heard about image stacking programs like Photo Acute Studio? It's meant to increase the working resolution of pics so you can do things like print larger or resolve fine details as if you had a sharper lens or higher resolution camera. Kinda similar in concept to taking pano pics with a longer lens (and taking more of them to cover the same FoV). What it does is take the 4 RAW files that I shot in sequence (and have converted directly into DNG without NR or sharpening), align them so that the pixels overlap, and overlay them on top of each other. kinda like stacking layers and the flattening the image in PS.

The NR-like effects you see are because when the images are stacked, pixel values are by necessity averaged somewhat, reducing random noise. The application automatically aligns the images as well as or better than Autopano Pro and other PanoTools based apps, so the alignment is fairly accurate and precise, so it tries to limit the averaging to each "cylinder" of stacked, identical pixels itself and less with the surrounding pixels, so the pixel structure remains largely intact. But it is not perfect, and averaging values does mean that the processed image will never be 100% like the original. But the end result is usually of net benefit to IQ and resolution.


Stereodude

Not really a
Joined
Jan 22, 2002
Messages
10,865
Location
Michigan
The real important issue here is why don't my colors match?



This is the same sRGB file loading in PS and in IrfanView. The best I can tell PS changes the colors it is displaying perhaps due to a monitor calibration file, or perhaps bypassing a monitor calibration file?

Anyone seen this or know how to fix it?


e_dawg

Storage Freak
Joined
Jul 19, 2002
Messages
1,903
Location
Toronto-ish, Canada
The real important issue here is why don't my colors match?



This is the same sRGB file loading in PS and in IrfanView. The best I can tell PS changes the colors it is displaying perhaps due to a monitor calibration file, or perhaps bypassing a monitor calibration file?

Anyone seen this or know how to fix it?

IrfanView does not support colour management or ICC/ICM profiles. Therefore, it does not read your sRGB file as sRGB.

To get PhotoShop to match IrfanView's colours, simply remove the sRGB profile from your image by going to Edit > Assign Profile > Don't Color Manage This Document.

The image in Photoshop should now match the image in IrfanView. To go back, just select the previous state in your History palette.


Stereodude

Not really a
Joined
Jan 22, 2002
Messages
10,865
Location
Michigan
IrfanView does not support colour management or ICC/ICM profiles. Therefore, it does not read your sRGB file as sRGB.

To get PhotoShop to match IrfanView's colours, simply remove the sRGB profile from your image by going to Edit > Assign Profile > Don't Color Manage This Document.

The image in Photoshop should now match the image in IrfanView. To go back, just select the previous state in your History palette.
What you say works in theory except that sRGB is the default color space for Windows and all applications that don't support other color spaces.

Edit: I was able to get them to match by changing the ICM profile for my monitor (In Windows settings) from the one created by the Pantone Eye One to standard sRGB one with Windows.


Stereodude

Not really a
Joined
Jan 22, 2002
Messages
10,865
Location
Michigan
I can also get them to match by changing the RGB Working Space in Photoshop to the one created with the Pantone Eye One and telling PS not to manage the color in the files when I open them.

This solution though creates a big problem though if you open anything in PS that's not a sRGB file.


e_dawg

Storage Freak
Joined
Jul 19, 2002
Messages
1,903
Location
Toronto-ish, Canada
What you say works in theory except that sRGB is the default color space for Windows and all applications that don't support other color spaces.

Edit: I was able to get them to match by changing the ICM profile for my monitor (In Windows settings) from the one created by the Pantone Eye One to standard sRGB one with Windows.

Okay, so I guess what is happening is that because IrfanView is not colour management aware and does not support ICC/ICM profiles, it is not making use of your monitor's profile whereas Photoshop is. So the difference is your monitor's profile being used vs not used.


Stereodude

Not really a
Joined
Jan 22, 2002
Messages
10,865
Location
Michigan
Okay, so I guess what is happening is that because IrfanView is not colour management aware and does not support ICC/ICM profiles, it is not making use of your monitor's profile whereas Photoshop is. So the difference is your monitor's profile being used vs not used.
I'm not sure that's what's happening. It seems like Photoshop thinks the ICM profile assigned to the monitor is not a sRGB correction but instead tries to compensate for it being a different color space.


e_dawg

Storage Freak
Joined
Jul 19, 2002
Messages
1,903
Location
Toronto-ish, Canada
I can also get them to match by changing the RGB Working Space in Photoshop to the one created with the Pantone Eye One and telling PS not to manage the color in the files when I open them.

I'm not sure changing your working space is the causative factor, but telling PS not to colour manage probably is.

This solution though creates a big problem though if you open anything in PS that's not a sRGB file.

I'm sure it would be. I think the easiest solution would be to do the Assign Profile > Don't Color Manage This Document step that I mentioned before. It takes the least effort, and you can even set up a couple actions with keyboard shortcuts to activate and deactivate it.
